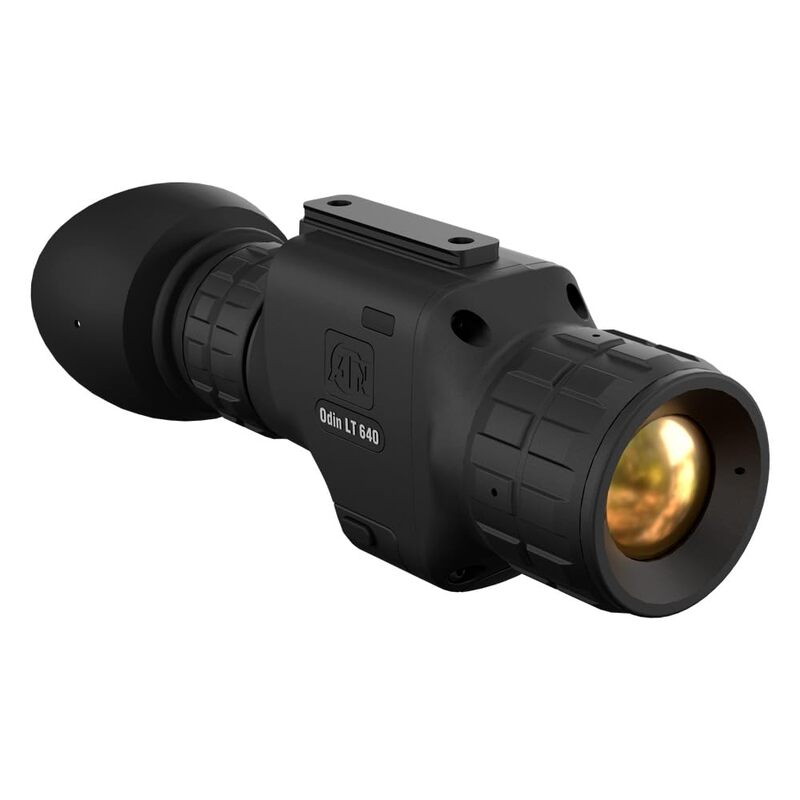

ATN ODIN LT Wearable Compact Thermal Monocular
Customize
The ATN ODIN LT is a compact, wearable and handheld thermal monocular powered by the Obsidian LT core. It includes a 35 mm lens and a 640x480 thermal sensor with 12 µm pixel pitch and 60 fps frame rate, delivering clear thermal imagery. The monocular offers magnification control, a 1280x960 display, 25 mm eye relief, and selectable White Hot and Black Hot color modes. Built weather-resistant for field use, it is battery powered (standard CR123A with an optional rechargeable battery pack and USB Type-C charging on the rechargeable battery). Typical runtimes and optional rechargeable operation are provided, and operating temperatures cover a wide range. The compact physical dimensions and roughly 1 lb weight support helmet/head mounting or handheld use for ergonomic, hands-free observation. Detection, recognition and identification performance for human targets is provided for long-range observation, making the unit suitable for night operations and tactical observation.
- ATN's Obsidian LT core drives this hands free, compact, ergonomic and versatile thermal monocular for the best observation experience. In the cover of night, trust ATN to give you sight.
- White Hot/Black Hot Mode for display of moving objects in your preferred color palette.
- This Compact Thermal Monocular fits in one hand and is easily manipulated, giving the user versatility and easy access to the menu.
- The Hi-Res 1280x960 display will provide clear and vivid images of the scene being observed.
- Hand held, Helmet or Head mounted for long term comfortable observation of the scene.
Specifications:
| Product Details | |
| Eye Piece Lens Description | Galilean |
| Finderscope | Reflex |
| Focal Length Description | Approximately 35 mm (based on lens diameter, but exact focal length is not specified) |
| Item model number | TIMNODN635X |
| Model Name | ATN ODIN LT 640 3-12x |
| Telescope Mount Description | Universal Helmet Mount |
| Sizing & Dimensions | |
| Height | 1.81 inches |
| Length | 5.16 inches |
| Product Dimensions | 5.16"D x 2.8"W x 1.81"H |
| Product Weight | 16 ounces |
| Weight | 1 pounds |
| Width | 2.8 inches |
| Technical Specifications | |
| Color Modes | White Hot, Black Hot |
| Display Resolution | 1280x960 pixels |
| Eye Relief | 25 mm |
| Field of View | 12.6 x 9.4 |
| Frame Rate | 60 fps |
| Magnification | 3-12x |
| Operating Temperature | -20F to +120F / -28C to 48C |
| Pixel Pitch | 12 µm |
| Sensor Resolution | 640x480 pixels |
