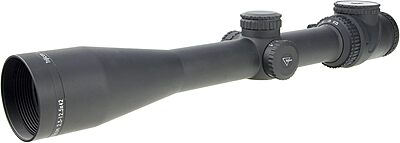

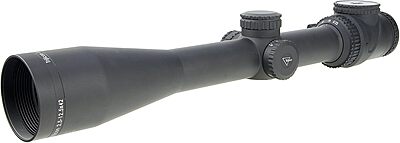

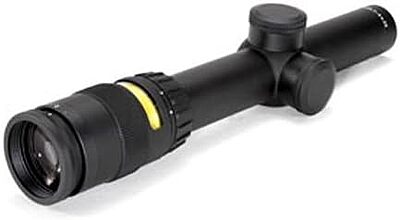

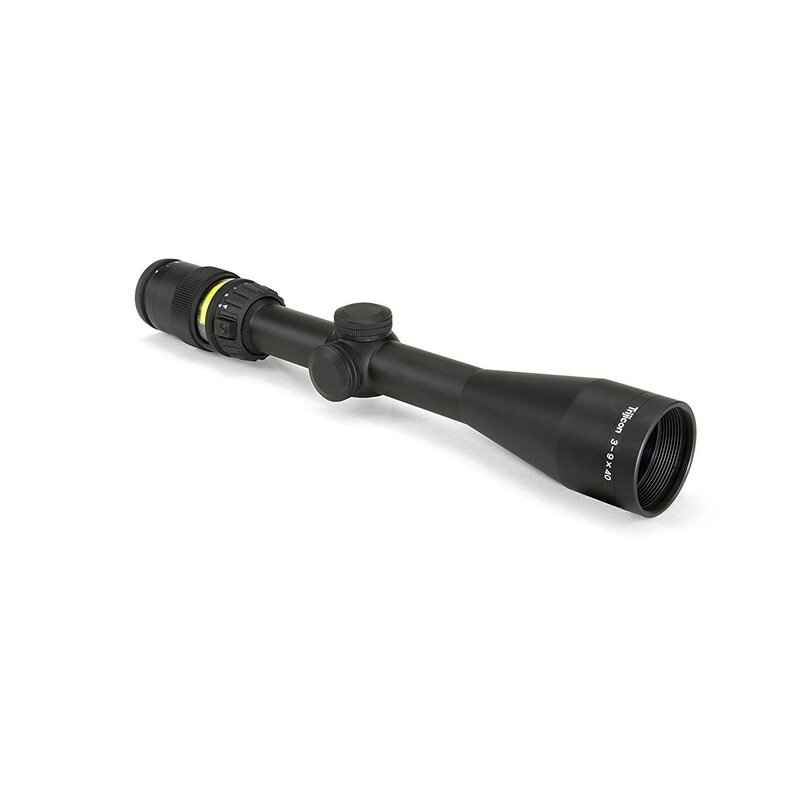

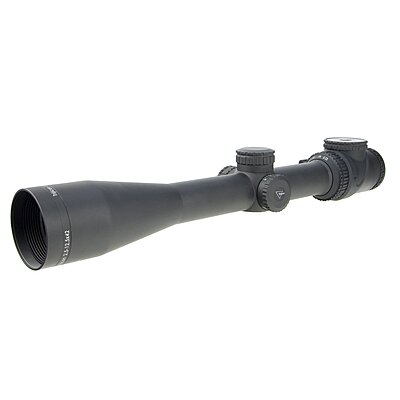

TRIJICON AccuPoint Battery-Free Illuminated Riflescope
Customize
TRIJICON AccuPoint riflescopes combine battery-free fiber optic and tritium illumination to deliver a vivid aiming point without reliance on batteries. The illumination automatically adjusts to ambient light, with a manual brightness adjustment override available for daylight preference. Fully multi-coated, broadband, anti-reflective glass offers excellent light transmission, true detail, and color with zero distortion, while a quick-focus eyepiece supports fast target engagement. Illuminated reticles employ the Bindon Aiming Concept (BAC) to draw the eye for rapid acquisition. A ruggedized, hard-anodized aircraft-quality aluminum body is engineered to withstand extreme conditions and is nitrogen-filled to help prevent fogging; the solid black-matte finish reduces glare. Water resistant to 10 feet, with long-eye relief and precise, tool-free windage/elevation adjusters for easy zeroing. Backed by a limited lifetime warranty on optical systems and metal structure, and 15 years on the tritium lamp.
- ZERO FORWARD EMISSION: The illuminated reticle doesn’t project any illumination from the objective lens
- SECOND FOCAL PLANE RETICLE: Reticle size remains constant as magnification increases which provides a more exact aiming point at higher magnifications
- AIRCRAFT-GRADE ALUMINUM HOUSING: All-weather rugged construction protects against the toughest elements
- BATTERY-FREE ILLUMINATION: Fiber optic technology automatically adjusts the brightness level and contrast of the reticle aiming point to available light conditions and a tritium phosphor lamp illuminates the reticle in low to no light
- SUPERIOR QUALITY LENSES: Multi-coated lenses provide superior clarity and light gathering capabilities with zero distortion
Specifications:
| Product Details | |
| Compatible Devices | Rifle |
| Country of Origin | Japan |
| Included Components | Scope, lens caps, lens pen, logo sticker, manual, warranty card |
| Manufacturer | Pro-Motion Distributing - Direct |
| Model Name | TR20 |
| Mounting Type | Weaver Mount |
| Part Number | TR20 |
| Reticle Type | Triangle |
| Style | Triangle Post Reticle |
| Brand Name | Trijicon |
| Sizing & Dimensions | |
| Objective Lens Diameter | 1.57 inches |
| Package Weight | 2 Pounds |
| Weight | 13.4 ounces |
| Technical Specifications | |
| Adjustment @ 100 yards | 4 clicks per inch |
| Exit Pupil | 13.3 to 4.4 millimeters |
| Eye Relief | 3.6 to 3.2 inches |
| Field Of View | 6.45 Degrees |
| Housing Material | 6061-T6 aluminum, hard coat anodized per MIL-A-8265, Type III, Class 2, dull and non reflective |
| Illumination source | Fiber Optics and Tritium |
| Magnification Maximum | 9 |
| Magnification Minimum | 3 |
| Reticle Pattern | Mil-Dot Crosshair |
| Tube Size | 1 inch |
| Water-resistant to | ten feet |
| Weight (as listed in specs) | 13.4 ounces |
