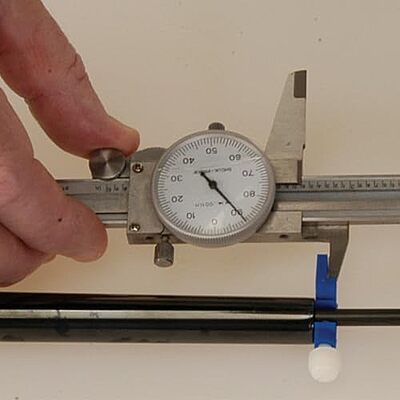

Simply install the appropriate size tip on the end of your cleaning rod, insert the cleaning rod to the bolt face, install one clamp, remove the bolt and drop in a bullet (projectile only) into the chamber. Hold the bullet against the rifling with a pencil, touch the bullet tip with the cleaning rod tip and install the other clamp. Now measure the inside distance between the two clamps with a calipers and record, or use as a gauge to check the seating depth set-up during your reloading sequence., Stockable: N INCLUDES: 2 clamps. VERSATILITY: Works on all rifles. EASE OF USE: Use a cleaning rod and 2 clamps to measure off overall cartridge length or seating depth. SPECS: Clips to a cleaning rod of ¼” diameter or less.
| Materials & Construction | |
| Color | blue, white |
| Material | Plastic |
| Product Details | |
| Included Components | Frankford Arsenal Cartridge Overall Length Gage |
| Model Name | Frankford Arsenal Cartridge Overall Length Gage |
| Model Year | 2015 |
| Number of Items | 5 |
| Set Name | One |
| Warranty Description | 1-year manufacturer |
| Sizing & Dimensions | |
| Height | 1 inches |
| Item Dimensions | 1 x 1 x 1 inches |
| Item Package Dimensions | 7.2 x 3.39 x 0.71 inches |
| Length | 1 inches |
| Size | One Size |
| Weight | 1.06 ounces |
| Width | 1 inches |
| Technical Specifications | |
| Item Dimensions Lx Wx H | 1 x 1 x 1 inches |
| Item Package Dimensions L x W x H | 7.2 x 3.39 x 0.71 inches |
| Number of Items | 5 |
| Warranty | 1-year manufacturer |
